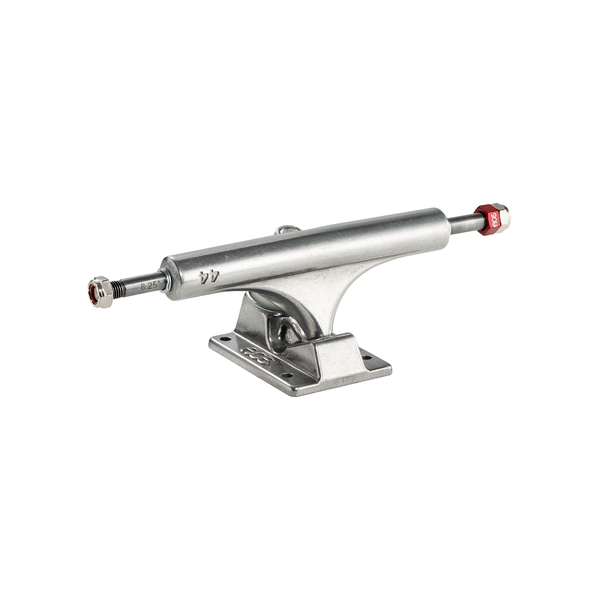

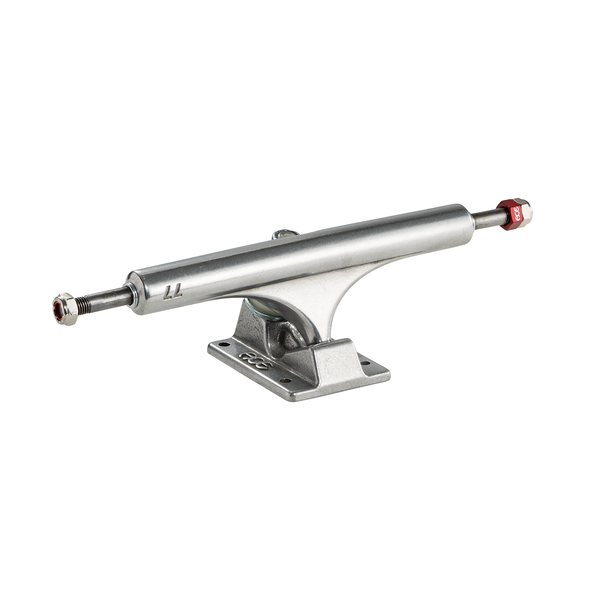

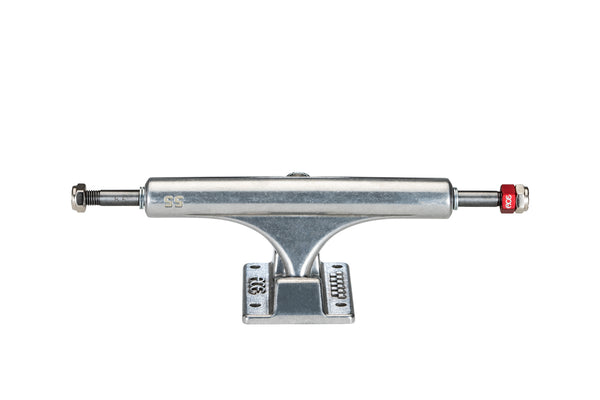

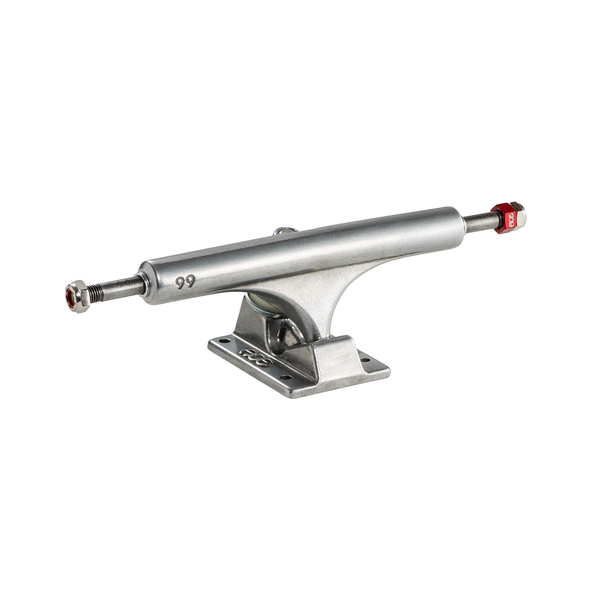

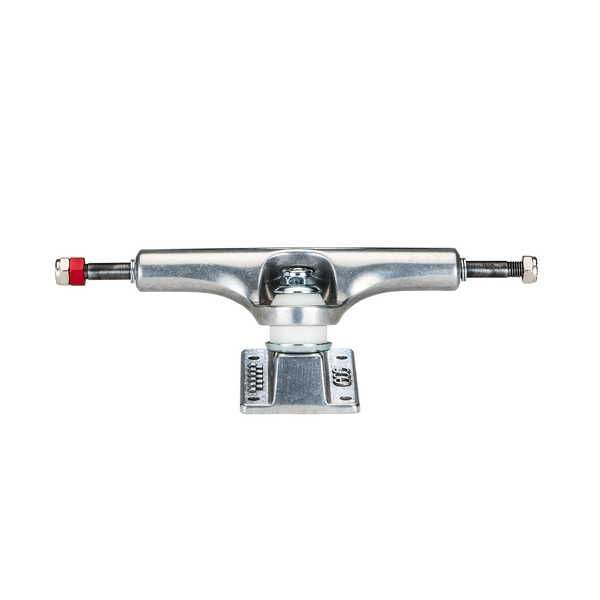

Ace AF1 - Polished
Brand: Ace Trucks
TRUCKS ARE SOLD INDIVIDUALLY, NOT BY THE PAIR. TO BUY A PAIR OF TRUCKS (2 PIECES), 2 TRUCKS MUST BE ADDED TO THE CART.
The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
The Ace AF1, tomorrow’s technology today!
- Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method.
- True T6 heat-treated baseplates and hangers.
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
- Patent pending rethreading axle nuts - no more damaged axle ends!
- Durable Hand-poured 96a urethane pivot bushings for smooth as silk response.
- Refined bushing and cup washer shapes for a cleaner turn.
- Machine-faced hanger ends for precise bearing contact.
AF1 22 - Axle width: 7.75” (197mm)
AF1 33 - Axle width: 8” (203mm)
AF1 44 - Axle width: 8.25” (209mm)
AF1 55 - Axle width: 8.5” (215mm)
AF1 66 - Axle width: 9” (229mm)
AF1 77 - Axle width: 9.5” (241mm)
